Nuclear cardiology in the clinical setting
Nuclear cardiology has made great strides in the past three decades.
Department of Nuclear Medicine and Molecular Imaging, University of the Witwatersrand, Johannesburg, South Africa
Corresponding author:
C D
Libhaber (carlosnuclear1@gmail.com)
During the past three decades, the most rapidly growing areas of
nuclear cardiology have been stress myocardial perfusion imaging
single photon emission computed tomography (MPI SPECT) and
positron emission tomography (PET) for the diagnosis and
prognosis of patients with known or suspected coronary artery
disease (CAD).
A stress ECG has a relatively low sensitivity and specificity. MPI is both more sensitive and specific than an exercise ECG for diagnosing CAD. Maximal benefit is observed in patients with intermediate probability of the disease, and in those with non-diagnostic ECGs.
Uses of MPI include:
• diagnosis of CAD
• identification of the site of ischaemia
• quantification of the extent and severity of impaired coronary flow reserve
• evaluation of acute ischaemic syndromes
• evaluation before surgery
• prognostic assessment of CAD patients
• assessment of tissue viability.
MPI is indicated to exclude or diagnose CAD in patients with suspected CAD, and as a screening test in those with intermediate CAD or at high risk of CAD. The latter includes patients with familial hyperlipidaemia, type II diabetes mellitus, family history of CAD, as well as those with atypical symptoms of ischaemic heart disease undergoing surgery and who are at high risk of developing peri- or postoperative cardiovascular events, e.g. those with peripheral vascular disease, aortic aneurysm, acute chest pain and the elderly.
Patients with a high probability of developing coronary heart disease require imaging to help in the planning of appropriate management rather than for diagnosis. MPI is particularly valuable to confirm silent myocardial ischaemia or infarction.
Multiple non-coronary causes of ST-segment depression that can render the stress ECG uninterpretable are:
• digitalis
• severe hypertension
• severe aortic stenosis
• anaemia
• severe hypoxia
• left ventricular hypertrophy
• glucose load
• hypokalaemia
• mitral valve prolapse
• IV conduction disturbance
• supraventricular tachyarrhythmias
• cardiomyopathy
• sudden excessive exercise
• hyperventilation
• severe volume or pressure overload.
In the abovementioned cases, MPI can contribute in clarifying the presence or absence of ischaemia.
In patients with confirmed CAD, MPI is indicated in:
• Evaluation of the functional significance of a coronary lesion. The extent and severity of the stress perfusion defect is closely related to subsequent cardiac events. It is therefore important to determine the size, severity and reversibility of a stress-induced perfusion defect. Functional criteria provide more accurate characterisation of stenosis severity than angiographic criteria. The presence of an angiographic lesion does not necessarily mean that it is responsible for the patient’s symptoms.
• Risk stratification and prognosis evaluation.
• Detection of ‘high-risk’ CAD.
• Post-infarction risk stratification. Detection of ischaemia, either at the site of injury or in a different region, detection of myocardial viability in the infarcted region, and flow-function relationship (from gated SPECT).
• Deciding on long-term medical management versus revascularisation in patients with stable angina.
• Detection of restenosis after revascularisation, percutaneous transluminal coronary angioplasty (PTCA), stents or coronary artery bypass graft (CABG).
• Detection of residual ischaemia while planning multiple PTCAs.
• Post-CABG evaluation in suspected graft occlusion or for routine assessment.
• Thallium-201, and technetium-99m radio-labelled lipophilic compounds such as sestamibi and tetrofosmin – most commonly used for MPI SPECT.
There are multiple contraindications to a physical stress test:
• poor motivation to exercise
• poor exercise capacity due to non-cardiac endpoints (such as fatigue or shortness of breath)
• beta-blocking drugs that limit heart rate response
• left bundle-branch block
• fewer than 5 days after a myocardial infarction
• peripheral arteriosclerotic vascular disease
• disabling arthritis
• history of stroke
• orthopaedic problems (e.g. low back pain)
• chronic pulmonary disease
• amputation of an extremity.
In these cases, exercise can be replaced by pharmacological stress by administering vasodilators, e.g. adenosine or dipyridamole, or inotropic agents, e.g. dobutamine. The sensitivity and specificity of the pharmacological and physical stress tests are equivalent.

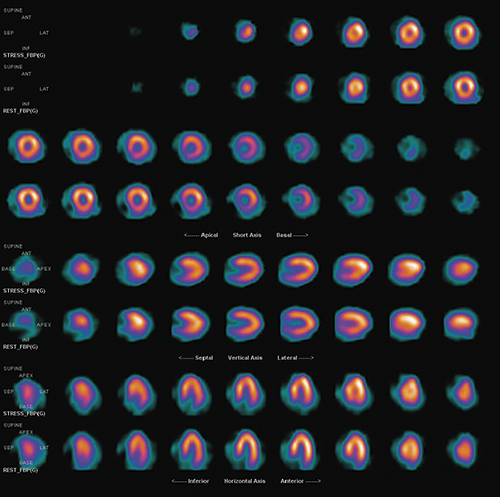

According to the American Society of Nuclear Cardiology,
the overall risk of hard adverse events (death or non-fatal
myocardial infarction) in an individual with a normal
perfusion scan is <1% for a period of 12 months,
independent of age, gender, symptoms, history of CAD, presence
of CAD, isotope or imaging technique used (Fig. 1).1 If
the perfusion scan is abnormal, the risk of adverse events
increases in proportion to the affected area.2-12

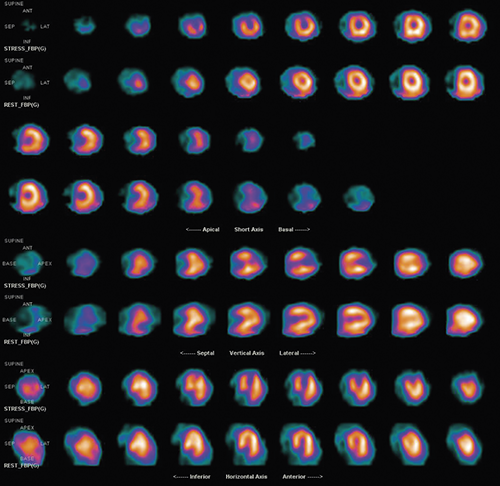

Fixed and reversible perfusion defects can predict hard events. However, patients with extensive stress-induced ischaemia are at higher risk (Fig. 2).3-6 , 8 , 9 , 11 , 13-15
Fig. 2. Myocardial perfusion imaging (MPI), showing severe ischaemia in the apical and apical-anterior segments.
Post-stress left ventricular ejction fraction (LVEF), as measured by gated SPECT, provides significant information in addition to the extent and severity of perfusion defects in the prediction of cardiac death.10
In patients with CAD and congestive heart failure, it is important to identify viable myocardium. Ventricular function and symptoms may improve with revascularisation therapy in patients with significant hibernating or stunned myocardial tissue. In addition, patients with viable myocardium are at greater risk of hard events than those without viability when treated medically and not referred for revascularisation. MPI SPECT with thallium-201, Tc-99m sestamibi or tetrafosmin and PET imaging with F-18 flourodeoxyglucose (FDG) have an essential role in localising viable myocardium.16-19
Currently, the clinical approach is based on identifying patients who are at risk for cardiac death and non-fatal myocardial infarction rather than those with anatomical coronary disease. MPI therefore plays a fundamental part in the diagnosis and risk stratification of these patients.2
References
1. Bateman TM. Clinical relevance of a normal myocardial perfusion scintigraphic study. American Society of Nuclear Cardiology. J Nucl Cardiol 1997;4:172-173. [http://dx.doi.org/10.1016/S1071-3581(97)90068-4]
2. Berman DS, Hachamovitch R, Shaw LJ, Hayes SW, Germano G. Nuclear cardiology. In: Fuster VAR, King S, O’Rourke RA, Wellens HJJ, eds. Hurst’s the Heart. New York: McGraw-Hill Companies, 200:525-565.
3. Heller GV, Herman SD, Travin MI, Baron JI, Santos-Ocampo C, McClellan JR. Independent prognostic value of intravenous dipyridamole with technetium-99m sestamibi tomographic imaging in predicting cardiac events and cardiac-related hospital admissions. J Am Coll Cardiol 1995;26:1202-1208. [http://dx.doi.org/10.1016/0735-1097(95)00329-0]
4. Ladenheim ML, Kotler TS, Pollock BH, Berman DS, Diamond GA. Incremental prognostic power of clinical history, exercise electrocardiography and myocardial perfusion scintigraphy in suspected coronary artery disease. Am J Cardiol 1987;59:270-277. [http://dx.doi.org/10.1016/0002-9149(87)90798-3]
5. Hachamovitch R, Berman DS, Kiat H, et al. Exercise myocardial perfusion SPECT in patients without known coronary artery disease: Incremental prognostic value and use in risk stratification. Circulation 1996;93:905-914. [http://dx.doi.org/10.1161/01.CIR.93.5.905]
6. Hachamovitch R, Berman DS, Shaw LJ, et al. Incremental prognostic value of myocardial perfusion single photon emission computed tomography for the prediction of cardiac death. Differential stratification for risk of cardiac death and myocardial infarction. Circulation 1998;97:535-543. [http://dx.doi.org/10.1161/01.CIR.97.6.535]
7. Marwick TH, Shaw LJ, Lauer MS, et al. The noninvasive prediction of cardiac mortality in men and women with known or suspected coronary artery disease. Economics of Noninvasive Diagnosis (END) Study Group. Am J Med 1999;106:172-178. [http://dx.doi.org/10.1016/S0002-9343(98)00388-X]
8. Vanzetto G, Ormezzano O, Fagret D, Comet M, Machecourt J. Long-term additive prognostic value of thallium-201 myocardial perfusion imaging over clinical and exercise stress test in low to intermediate risk patients: Study in 1137 patients with 6-year follow-up. Circulation 1999;100:1521-1527. [http://dx.doi.org/10.1161/01.CIR.100.14.1521]
9. Zellweger MJ, Lewin HC, Lai S, et al. When to stress patients after coronary artery bypass surgery? Risk stratification in patients early and late post-CABG using stress myocardial perfusion SPECT: Implications of appropriate clinical strategies. J Am Coll Cardiol 2001;37:144-152. [http://dx.doi.org/10.1016/S0735-1097(00)01104-9]
10. Sharir T, Germano G, Kang X, et al. Prediction of myocardial infarction versus cardiac death by gated myocardial perfusion SPECT: Risk stratification by the amount of stress-induced ischemia and the poststress ejection fraction. J Nucl Med 2001;42:831-837.
11. Travin MI, Heller GV, Johnson LL, Katten D, Ahlberg AW, Isasi CR. The prognostic value of ECG-gated SPECT imaging in patients undergoing stress Tc-99m sestamibi myocardial perfusion imaging. J Nucl Cardiol 2004;11:253-262. [http://dx.doi.org/10.1016/j.nuclcard.2004.02.005]
12. Thomas GS, Miyamoto MI, Morello AP, et al. Technetium 99m based myocardial perfusion imaging predicts clinical outcome in the community outpatient setting: The nuclear utility in the community ('NUC') study. J Am Coll Cardiol 2004;43:213-223. [http://dx.doi.org/10.1016/j.jacc.2003.07.041]
13. Hachamovitch R, Berman DS. The use of nuclear cardiology in clinical decision making. Semin Nucl Med 2005;35:62-72.
14. Kang X, Berman DS, Lewin HC, et al. Incremental prognostic value of myocardial perfusion single photon emission computed tomography in patients with diabetes mellitus. Am Heart J 1999;138:1025-1032. [http://dx.doi.org/10.1016/S0002-8703(99)70066-9]
15. Berman DS, Hachamovitch R, Kiat H, et al. Incremental value of prognostic testing in patients with known or suspected ischemic heart disease. A basis for optimal utilization of exercise technetium-99m sestamibi myocardial perfusion single-photon emission computed tomography. J Am Coll Cardiol 1995;26:639-647. [http://dx.doi.org/10.1016/0735-1097(95)00218-S] [Erratum. J Am Coll Cardiol 27:756:996.]
16. Di Carli MF, Davidson M, Little R, et al. Value of metabolic imaging with positron emission tomography for evaluating prognosis in patients with coronary artery disease and left ventricular dysfunction. Am J Cardiol 1994;73(8):527-533. [http://dx.doi.org/10.1016/0002-9149(94)90327-1]
17. Alman KC, Shaw LJ, Hachmovich R, Udelson JE. Myocardial viability testing and impact of revascularization on prognosis in patients with coronary artery disease and left ventricular dysfunction: A meta-analysis. J Am Coll Cardiol 2002;39(7):1151-1158. [http://dx.doi.org/10.1016/S0735-1097(02)01726-6]
18. Haas F, Haehnel CJ, Picker W, et al. Preoperative positron emission tomographic viability assessment and perioperative and postoperative risk in patients with advanced ischemic heart disease. J Am Coll Cardiol 1997;30(7):1693-1700. [http://dx.doi.org/10.1016/S0735-1097(97)00375-6]
19. Di Carli MF, Asquarzaide F, Schelbert HR, et al. Quantitative relation between myocardial viability and improvement in heart failure symptoms after revascularization in patients with ischemic cardiomyopathy. Circulation 1995;92:3436-3444. [http://dx.doi.org/10.1161/01.CIR.92.12.3436]
